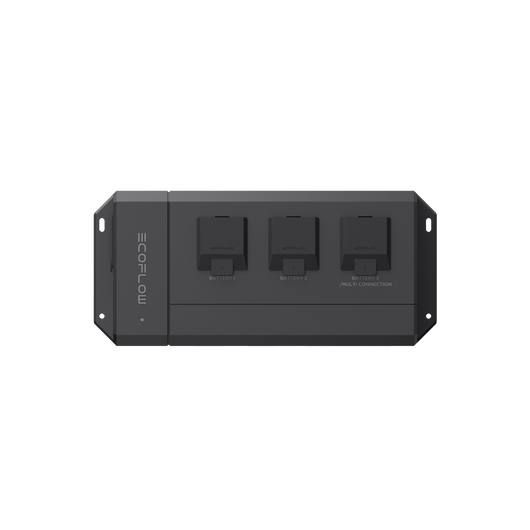

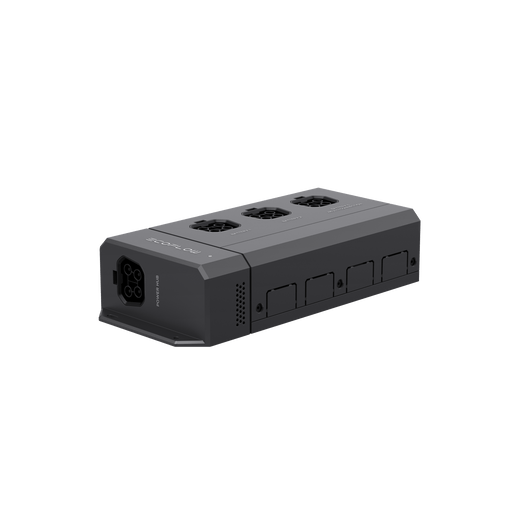

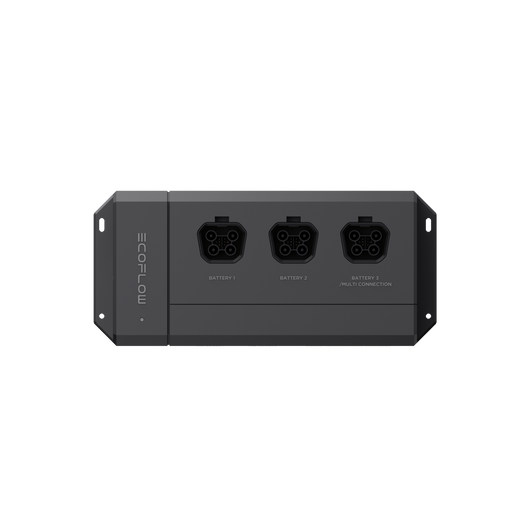

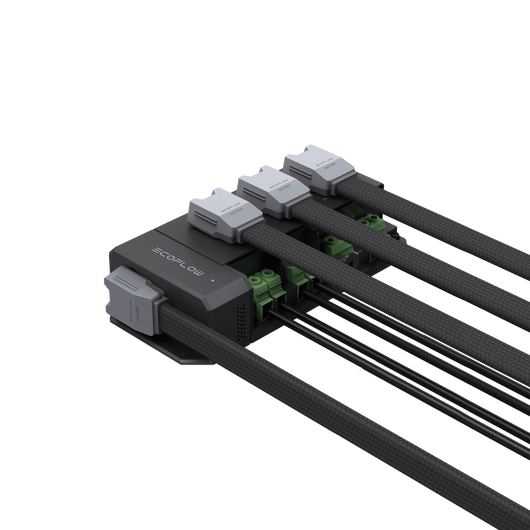

The EcoFlow Power Dock enables adding up to 9x EcoFlow LFP batteries to the Power Kits system with one EcoFlow Power Hub. It can also connect with two 48V DC appliances. The original and new EcoFlow Power Hubs features 3x LFP Battery connection ports, which allow up to 15kWh battery capacity in cases where minimal square footage cabinet space is present. The EcoFlow Power Dock is designed to expand battery capacities when cabinet or flooring space is not an issue and opens the possibility of expanding up to 45kWh of battery capacity.
Key Features:
Compatible with EcoFlow 5kVA (Gen 2) and 3.6kW (Gen 1) Power Hubs
Simple connection with EcoFlow LFP Batteries to Power Hub
Monitor via EcoFlow PowerInsight, Console, or App
48V appliance compatibility
Enables Power Kits battery expansion up to 45kWh capacities
Specs
Dimensions (HWD)
143x316x70mm (5.6x12.4x2.8in)
Peso neto
Approx. 1.8 kg (4 lb)
Operating temperature
-25°C to 45°C (-13 F to 113°F)
Storage Temperature
-25°C to 70°C (-13F to 158°F)
IP Rating
IP20
Power Hub Port
40-60V⎓100A Max
Battery Ports1/2
40-60V⎓100A Max
Battery Port 3/MULTICONNECTION Port
40-60V⎓100A Max
48V DC Output1/2
40-60V⎓55A Max
External Battery Manual Switch
Supported
Warranty
5 Years
